Launch Monday, May 17

• Rocket: United Launch Alliance Atlas V
• Configuration:
• Mission: Space Force's fifth Space Based Infrared System Satellite
• Launch Time: TBD
• Launch Complex: 41 at Cape Canaveral Space Force Station

Quelle: Florida Today

----

Update: 2.05.2021

.

Atlas V Fully Stacked, Targets SBIRS GEO-5 Launch NET 17 May

No sooner has the dust settled from the first United Launch Alliance (ULA) mission of 2021—last week’s flight of a Delta IV Heavy from Vandenberg Air Force Base, Calif., laden with the highly classified NROL-82 payload for the National Reconnaissance Office—than a workhorse Atlas V rocket stands waiting in the wings for its own mid-May ride to orbit. Earlier this week, ULA announced that the vehicle had completed initial structural “build-up” in the Vertical Integration Facility (VIF), near Space Launch Complex (SLC)-41 at Cape Canaveral Space Force Station, Fla. Currently targeted to launch no sooner than 17 May, the mission will deliver the fifth geostationary-orbiting element of the Space-Based Infrared System (SBIRS GEO-5) for the U.S. Space Force.

As previously reported by AmericaSpace, the flight hardware for the Atlas V arrived safely in Port Canaveral on 1 April. The 107-foot-long (32.6-meter) Common Core Booster (CCB) for the rocket, together with its 41-foot-long (12.6-meter) Centaur upper stage, departed ULA’s manufacturing site in Decatur, Ala., on 23 March and traveled via the Mississippi River and the Gulf of Mexico, aboard the R/S RocketShip transport vessel. Shortly after its arrival on the Space Coast, the Centaur was transferred to ULA’s facilities for flight preparations, whilst the Atlas V CCB headed via flatbed truck to the ordnance bay in the Atlas Spaceflight Operations Center (ASOC).

Here it was put through initial preparations and declared ready to commence stacking operations for launch. Vertical integration of the two-stage rocket with its two Aerojet Rocketdyne-provided AJ-60A solid-fueled boosters began on 21 April in the cavernous interior of the VIF, when the Atlas V was hoisted upright on the Mobile Launch Platform (MLP). This completed the Launch Vehicle On Stand (LVOS) milestone, which officially marked the start of the SBIRS GEO-5 launch campaign.

Last weekend, the two AJ-60A boosters—each standing 55.7 feet (17 meters) tall—were installed on opposite sides of the Atlas V CCB. With a combined propulsive yield of just under 760,000 pounds (340,000 kg), they will afford the stack more than half of its energy at liftoff. This will mark the 40th use of AJ-60-class boosters on Atlas V missions since July 2003. The most recent flight of an Atlas V with the boosters occurred during last summer’s launch of the Perseverance mission to Mars. ULA intends to gradually retire its existing stock of AJ-60As over the coming months, in favor of Northrop Grumman’s GEM-63 booster, which first flew during last November’s NROL-101 mission.

Last Monday, the basic structural “build-up” of the Atlas V was completed with the Off-site Vertical Integration (OVI) milestone, with the attachment of the inter-stage element, the Centaur upper stage and the base of the Payload Fairing (PLF). In the coming days, the rocket will be powered up, its flight controls thoroughly checked out, its engine steering profiles performed and a Combined Systems Test undertaken. Next week, the PLF—housing the SBIRS GEO-5 spacecraft—will be lifted onto the booster to top-off the stack at a height of 194 feet (59 meters).

With two solids, a 13-foot-diameter (4-meter) fairing and a single-engine Centaur, the Atlas V for SBIRS GEO-5 is designated “421” and will mark the eighth use of this particular configuration of the rocket since October 2007. It most recently saw service for the October 2017 launch of NROL-52 for the National Reconnaissance Office. In addition to a pair of missions for the NRO, other past customers have included two Wideband Global Satcoms (WGS) for the U.S. Space Force, two commercial communications satellites and NASA’s 2015-launched Magnetospheric Multiscale Mission (MMS). All told, the 421 configuration can lift up to 30,800 pounds (14,000 kg) to low-Earth orbit or up to 15,200 pounds (6,890 kg) to Geostationary Transfer Orbit (GTO).

Uniquely, May’s launch will be the first time an Atlas V has flown in the 421 configuration to lift a SBIRS GEO satellite to orbit. The first three SBIRS GEO missions in May 2011, March 2013 and January 2017 rode atop “401” boosters, with no strap-on rockets, although January 2018’s launch occurred on a “411” with a single side booster.

ULA CEO Tory Bruno noted at the time of the SBIRS GEO-4 launch that the additional impetus afforded by the single solid provided “enough energy to allow Centaur to be immediately deorbited” after its mission, rather than placing it into a designated disposal (or “junkyard”) orbit for slower decay and eventual re-entry. It is believed that the additional performance afforded by the 421 will permit a more optimized orbit for the payload.

SBIRS GEO-5 completed an ahead-of-schedule construction and testing campaign last October, with the elimination of unnecessary programmatic oversight and reporting, a restructured test program and a streamlined production schedule having enabled Lockheed Martin Corp. to finish SBIRS GEO-5 in only five years. Described as a “global guardian” for ballistic missile detection and defense, it is the fifth geostationary element of an upgraded set of space-based infrared “eyes” and follows four previous missions also launched atop Atlas Vs between May 2011 and January 2018.

SBIRS forms part of a multi-billion-dollar Pentagon effort to replace the earlier Defense Support Program (DSP) network of early-warning satellites, whose own ancestry extends back to the 1970s. It is expected to enable the United States’ space surveillance needs for the next two decades, with focuses including advanced early warning, missile defense and battlespace characterization. In its final form, it will comprise six GEO satellites at geostationary altitude, together with adjunct sensors aboard the HEO-1 and HEO-2 satellites, which were inserted into highly-elliptical orbits back in June 2006 and March 2008.

The successful launch of SBIRS GEO-1 in May 2011 marked the culmination of a long and tortured development process, which saw costs balloon by over 400 percent from an estimated $4 billion to over $17 billion. According to General Accounting Office (GAO) auditors, as reported by Defense Industry Daily in February 2013, the program suffered from “immature technologies, unclear requirements, unstable funding, underestimated software complexity [and] poor oversight”.

As circumstances transpired, the Air Force’s apparent lack of alternatives for an urgent national requirement to have an advanced infrared surveillance system in orbit to actively monitor ballistic missile launches and nuclear events seems to have prevented SBIRS’ cancelation. Its capabilities include highly sophisticated scanning/staring sensors, with improved infrared sensitivity and the scope to provide wide-area (“scanning”) surveillance and small-area (“staring”) observations. Three further SBIRS GEO satellites were launched in March 2013, January 2017 and January 2018.

In the meantime, a $284.4 million contract for the purchase of long-lead items for GEO-5 and GEO-6 were awarded in March 2013, ahead of the definitive $1.86 billion deal between the Air Force and Lockheed Martin in June 2014 to fabricate both satellites. At the time of the award, it was noted that the contract formed part of “a thoughtful acquisition strategy aimed at further reducing cost and cycle time”. In particular, more than a billion dollars’ worth of saving were achieved through “block-buy” contracting practices and the elimination of unnecessary program oversight and reporting, a restructured test program and a streamlined production schedule.

In September 2017, both the GEO-5 and GEO-6 satellites wrapped up their Critical Design Review (CDR) at Lockheed Martin’s Sunnyvale, Calif., facility, with Col. Dennis Bythewood, director of SMC’s Remote Sensor Systems Directorate, praising the “resiliency” of the program. Upon the completion of the CDR, both satellites moved directly into manufacturing and integration.

In February 2019, ULA was awarded a $441.6 million contract to launch three payloads—including SBIRS GEO-5 and GEO-6—with an expectation that the GEO-5 element would fly atop an Atlas V from Space Launch Complex (SLC)-41 at Cape Canaveral Air Force Station, Fla., as early as March 2021.

GEO-5 pressed smoothly through Thermal Vacuum (TVAC) testing last summer, which constituted a “major milestone” in readying the satellite for final assembly. “Lockheed Martin Space overcame COVID-19-related challenges,” noted the Air Force, “to maintain assembly and test operations with minimal impacts.” Following its completion last fall, SBIRS GEO-5 was delivered aboard a C-5M Super Galaxy transport aircraft from Moffett Airfield in California to the Space Coast in March.

The design of SBIRS GEO-5 marks the inaugural use of Lockheed Martin’s heavily modernized LM2100 “Combat Bus”, carrying twin solar arrays and a powerful communications and imaging payload. In what has been described as a “technical refresh update”, their newer components and more modern electronics are expected to achieve a boost in capability and reliability.

The new SBIRS benefits from 26 enhancements, ranging from improved cyber-hardening, greater spacecraft power, propulsion and electronics, common components to streamline manufacturing and a flexible design architecture. According to Lockheed Martin, the LM2100 Combat Bus architecture will also form the baseline for the upcoming Next-Generation Overhead Passive Infrared (Next-Gen OPIR) Block 0 satellites and the Global Positioning System (GPS) Block III Follow-On series, both of which are expected to enter service around the middle of this decade.

Led by the Infrared Space Systems Directorate at the Air Force’s Space and Missile Systems Center (SMC) at Los Angeles Air Force Base in Los Angeles, Calif., the SBIRS GEO satellites and their ground systems are operated by the 460th Space Wing at Buckley Air Force Base in Aurora, Colo. “SBIRS’ role as an ever-present, on-orbit guardian against global ballistic missile threats has never been more critical,” said Tom McCormick, Lockheed Martin’s vice president for OPIR Systems. “In 2019 alone, SBIRS detected nearly one thousand missile launches, which is about a two-fold increase in two years.”

Quelle: AS

----

Update: 11.05.2021

.

We’re honoring members of the U.S. military during the #AtlasV #SBIRSGEO5 broadcast on Mon. May 17, a mission critical for our nation’s warfighters.

in a picture of a service member by Fri., May 14 at 5 p.m. EDT and we may share it on our broadcast!

Quelle: ULA

----

Update: 13.05.2021

.

U.S. military warning sentinel attached to Atlas 5 rocket at Cape Canaveral

United Launch Alliance crews at Cape Canaveral have topped off an Atlas 5 rocket for liftoff Monday with the U.S. military’s next infrared sentinel to join a satellite fleet designed detect missile launches around the world.

Ground teams at ULA’s Vertical Integration Facility installed the U.S. Space Force’s fifth Space Based Infrared System, or SBIRS, satellite on top of the Atlas 5 rocket May 7. Since then, ULA personnel have performed a series of tests to verify mechanical and electrical connections between the rocket and the SBIRS GEO 5 spacecraft encapsulated inside the Atlas 5’s payload shroud.

The preparations set the stage for rollout of the 194-foot-tall (59-meter) rocket from the vertical hangar to pad 41 at Cape Canaveral Space Force Station this weekend. The Atlas 5 will ride on its mobile launch platform along rail tracks for the 1,800-foot (550-meter) trip to the launch pad.

After connecting the rocket with ground systems — such as propellant fluid lines — at the launch pad, ULA will kick off the countdown early Monday to target a launch time of 1:35 p.m. EDT (1735 GMT).

The launch Monday will be the first Atlas 5 mission of the year, and ULA’s second flight of 2021 overall, following the successful launch of a Delta 4-Heavy rocket from California on April 26 with a classified U.S. government spy satellite.

The Atlas 5 launcher that will deliver the SBIRS GEO 5 spacecraft to orbit will fly in the “421” configuration with a 4-meter and two strap-on solid rocket boosters supplied by Aerojet Rocketdyne. A single RL10 engine from Aerojet Rocketdyne will power the Atlas 5’s Centaur upper stage.

The launch will mark the eighth flight of the Atlas 5-421 variant, and the 87th launch of an Atlas 5 rocket since its debut in 2002.

ULA crews at Cape Canaveral began stacking the Atlas 5 rocket on its launch table inside the VIF last month. The bronze first stage booster was raised vertical and positioned onto the launch mount April 21, a few weeks after the stage arrived at the Florida launch base from ULA’s rocket factory in Decatur, Alabama.

Twin AJ-60A solid rocket boosters from Aerojet Rocketdyne were installed on the side of the Atlas first stage April 23 and 24. The strap-on motors will give the rocket an extra boost off the launch pad, firing alongside the first stage’s kerosene-fueled RD-180 main engine.

Ground teams hoisted the rocket’s cryogenic Centaur upper stage and its Aerojet Rocketdyne RL10 engine on top of the Atlas first stage April 26. The Centaur was integrated with the rocket’s interstage and the bottom segment of the payload fairing inside a nearby processing facility before teams lifted the entire unit on top of the first stage.

The build-up of the Atlas 5 rocket was completed Friday, May 7, with the stacking of the 45-foot-tall (13.7-meter) payload fairing inside the VIF.

Workers encapsulated the SBIRS GEO 5 satellite inside the payload fairing at a clean room facility at the spaceport. The spacecraft arrived at Cape Canaveral on March 18 on a U.S. Air Force cargo plane from California, where Lockheed Martin built and tested the satellite at a factory in Sunnyvale.

Once at Cape Canaveral, the spacecraft was loaded with its supply of hypergolic hydrazine and nitrogen tetroxide propellants for in-space maneuvers.

SBIRS GEO 5 is follows four previous SBIRS satellites launched into geosynchronous orbit since 2011 to replace the military’s aging Defense Support Program missile warning spacecraft, the last of which launched in 2007. All of the SBIRS satellites in geosynchronous orbit rode to space aboard Atlas 5 rockets.

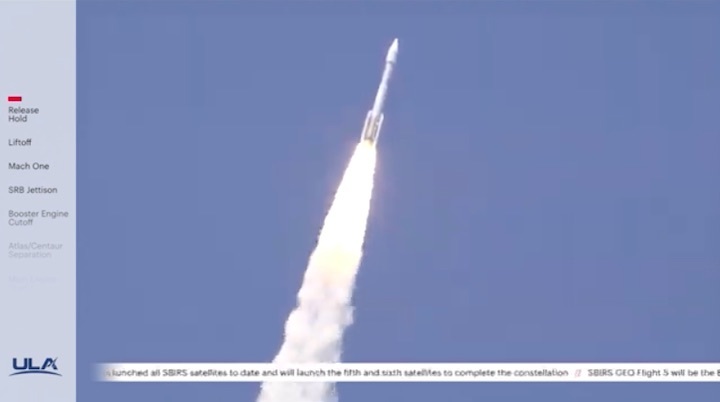

The Atlas 5 rocket launching the SBIRS GEO 5 mission will head east from Cape Canaveral. The launcher’s two solid rocket boosters will consume their pre-packed propellant in about a minute-and-a-half, then jettison to fall into the Atlantic Ocean at T+plus 2 minutes, 9 seconds.

The first stage’s Russian-made RD-180 main engine will shut down at T+plus 4 minutes, 10 seconds, followed by stage separation six seconds later. The hydrogen-fueled RL10 engine on the Centaur upper stage will ignite at T+plus 4 minutes, 26 seconds, for the first of two firings to place the SBIRS GEO 5 spacecraft into an elongated transfer orbit.

After cutoff of the Centaur’s first burn at T+plus 15 minutes, 6 seconds, the rocket will deploy two suitcase-size secondary payloads for the U.S. Air Force Academy. A second RL10 engine burn will begin at T+plus 31 minutes, 6 seconds, to maneuver into an orbit closer to the SBIRS GEO 5 spacecraft’s final operating position.

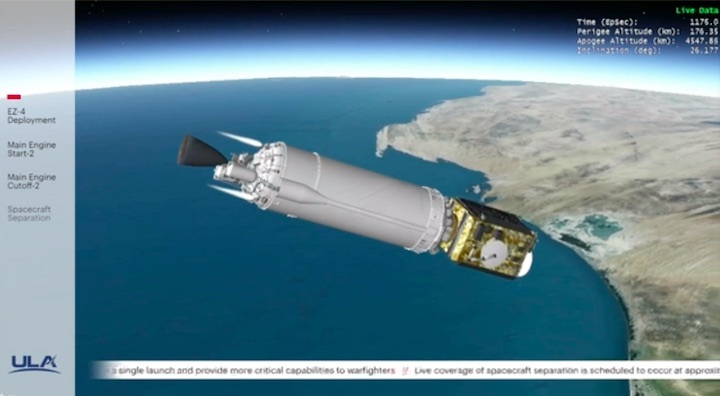

Separation of the Space Force’s new missile warning satellite is expected at T+plus 42 minutes, 46 seconds.

The Atlas 5’s guidance computer will aim to release the spacecraft in an orbit ranging in altitude between 575 miles (925 kilometers) and 22,216 miles (35,753 kilometers), with an inclination angle of 21.14 degrees to the equator.

The SBIRS GEO 5 spacecraft’s on-board propulsion system will steer the satellite to a circular geosynchronous orbit that is continuously at an altitude of nearly 22,300 miles over the equator. In that orbit, the satellite’s velocity will be fixed with the rate of Earth’s rotation, giving the craft’s infrared early warning sensors a constant view of the same part of the planet.

The new satellite differs from the first four SBIRS GEO satellites, introducing an upgraded spacecraft design Lockheed Martin calls the “combat bus.” Lockheed Martin built the fifth and sixth SBIRS GEO satellites using its new LM 2100 platform, which the company says is the result of an “internally-funded, multi-year modernization initiative.”

According to Lockheed Martin, the LM 2100 combat bus is designed to provide improved resiliency and hardening against cyber threats, along with additional spacecraft power, and enhanced propulsion and electronics. The modular design incorporates common components to streamline manufacturing, and can more easily accommodate new types of sensors to respond to innovation and new military requirements.

The LM 2100 combat bus will also be used by the next generation of missile warning satellites Lockheed Martin is building for the Space Force to replace the SBIRS fleet. The next generation of GPS navigation satellite, due to begin launching in 2026, will also use the combat bus platform.

The final SBIRS GEO satellite, GEO 6, is scheduled of launch on an Atlas 5 rocket in 2022. The military’s contracts with Lockheed Martin for the final two SBIRS GEO satellites are valued at about $2.2 billion, according to financial data published by the Pentagon in previous years.

Northrop Grumman builds the infrared sensors on the SBIRS satellites. The instruments can detect and track super-hot exhaust plumes from rocket motors, informing military officials of foreign missile launches. The information gathered by the SBIRS fleet could help defense units intercept an incoming missile before it strikes its target.

The SBIRS constellation includes a minimum of four SBIRS craft stationed in geosynchronous orbit and at least two infrared payloads in elliptical orbits aboard top secret National Reconnaissance Office spy satellites, providing polar coverage. The final two SBIRS satellites set for launch this year and next year will replenish the fleet.

Each infrared instrument package on the geosynchronous satellites includes staring and scanning sensors designed to provide visibility over an entire hemisphere, while allowing ground operators to focus the craft’s gaze on hotspots like North Korea.

Quelle: SN

----

Update: 16.05.2021

.

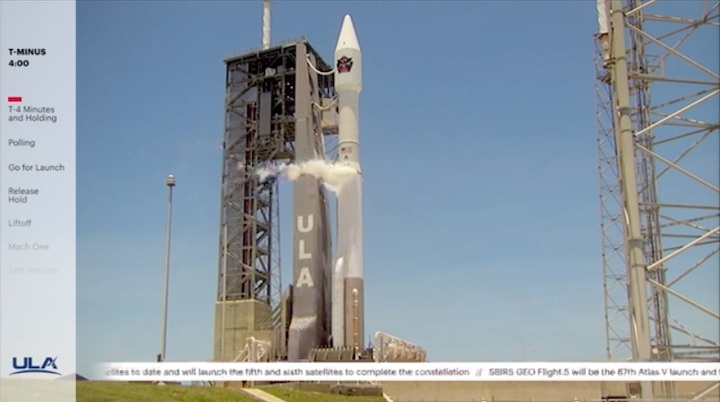

Atlas V rocket rolls to the pad

Earlier in the day, a different rocket made an appearance ahead of its debut next week. A United Launch Alliance Atlas V rolled to the pad at Cape Canaveral Space Force Station's Launch Complex 41, which will host the flight of a military missile warning satellite at 1:35 p.m. Monday.

The nearly 200-foot Atlas V is tasked with launching the Space Force's fifth Space Based Infrared System satellite, or SBIRS GEO-5. The rocket's single, Russian-built RD-180 engine will be assisted by two strap-on solid rocket boosters.

The Space Force on Saturday said weather for Atlas V stands at around 90% "go" with the presence of cumulus clouds noted as the only concern. In the event of a delay to Tuesday, conditions dip slightly to 80% "go."

SBIRS GEO-5 will mark ULA's first Florida launch of the year and 16th overall for the Space Coast.

Beyond Atlas V, Florida's next launch remains up in the air. The latest schedules show no activity until early June when a Falcon 9 rocket is expected to boost Sirius XM's latest satellite radio spacecraft.

Launch Monday, May 17

• Rocket: United Launch Alliance Atlas V
• Configuration: 421 (4-meter fairing, two solid rocket boosters, one upper stage engine)
• Mission: SBIRS GEO Flight 5 missile detection satellite
• Launch Time: 1:35 p.m. ET
• Launch Complex: 41 at Cape Canaveral Space Force Station
• Weather: 90% "go"

Quelle: Florida Today

----

Update: 17.05.2021

.

Launch postponed
